Overview

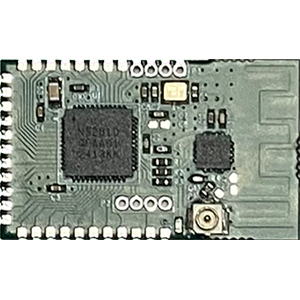

LC-512E is an ideal solution for wireless battery lights. It integrates a professional wireless transceiver, supports all wireless protocols and has the function of receiving signal strength indication.

LC-512E has 6 PWM outputs, professional voice control module, accurate battery indicator, touch button and infrared decoding function. All of these are integrated on a 27 x 16 mm PCB board. Make your design more flexible and install more convenient.

LC-512E supports RMD protocol, which is convenient for remotely modifying fixture parameters and querying fixture status.

Application

• DMX wireless battery light solution

Features

- PCB size is only 27 x 16 mm, 1.27 pitch stamp pads
- Integrated wireless DMX transceiver (supports WIDMX, G3, G4, G4S, CRMX, CRMX2) and built-in PCB antenna
- SPI display interface, suitable for OLED / TFT
- 6 PWM outputs
- Infrared receiver decoder
- Smart sound control for music visualization(FFT)
- Real-time measurement and display of signal strength, temperature and battery voltage
- Users can edit the chase effect, master-slave mode

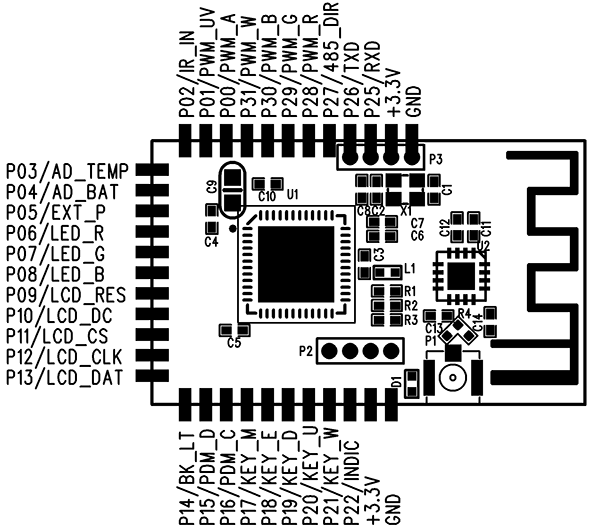

Pinout

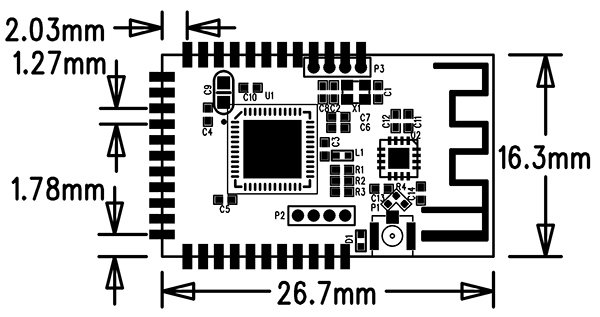

Dimensional drawings

Weight and Dimension Dimension: 27 x 16 mm
Weight: 5 g
System Information CPU: 32-bit ARM Core (Cortex-M4)
Radio Parameters Range: 600 meters (line-of-sight)
Frequency: 2.402 - 2.480GHz, ISM, 79 channels
Spread Spectrum: FHSS, 1100 hops / sec
Modulation: GFSK
Maximum Transmit Power: 22dBm
Receiver Sensitivity: -96dBm
DMX Signal Interface TTL
Environmental Limits Operating Temperature: -40 ~ 85 °C
Storage Temperature: -65 ~ 150 °C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements Power Input: DC 3.3V, ±5%
Power Consumption: 350 mA@3.3V DC max.
Reliability Automatic Reboot Trigger: Built-in WDT (watchdog timer)
Warranty Warranty: One-Year Limited Warranty
