Overview

DMX-ART is a kind of signal analysis, testing and controlling equipment, which sets wireless DMX transmitter & Receiver, Wired & Wireless controller and DMX Signal Analysis and other more functions all in one. It is the DMX512 Expert around you.

Integrates 3.5 inch HVGA display TFT and touch screen

It displays clearly, delicately and colorfully. All measured parameters and controller’s data are apparent. Perfect DMX touch controller will bring you unprecedented convenience and pleasure.

Accurately measure DMX512

DMX-ART can accurately measure the signal of Break time, MAB time, Number of channels, and refresh rate. It helps you get rid of oscilloscope and step into a visual age.

Built-in high-energy lithium-ion battery

DMX-ART has built-in Li battery with high energy and capacity. It can work long hours without power adapter. What's more, it is also a wireless transceiver with signal analysis displaying, which makes your wiring work simpler.

Features and Benefits

- High precision CNC machined aluminum shell, elegant and durable.
- TFT + Touching Screen, flexible and efficient touch controls make DMX into visual age.
- The industry’s first DMX signal analyzer, accurate measurement of various DMX parameters.
- Comes with wireless controller and wireless DMX monitoring function.
- Built-in high energy lithium battery, working long hours to meet your needs.
- Compatible with LC-512 Series (The wireless transceiver from our company)

Application

DMX signal analyzer (wireless transmitter)

DMX-ART can accurately measure various parameters of the console, including Break, MAB, number of channels, refresh rate and other parameters. All DMX data are visualized, while it acts as a wireless dmx transmitter, compatible with LC-512X.

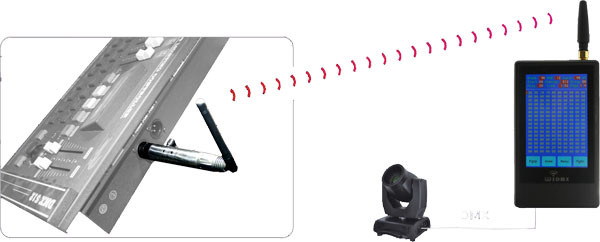

Wireless signal analyzer (wireless receiver)

DMX-ART can be used as a wireless DMX signal analyzer, through its high resolution TFT screen, you can clearly understand the operating frequency of the wireless network, clearly see the wireless network frequency agile process. DMX real-time monitoring of various parameters and data. a machine in hand, don’t worry wireless.

DMX512 Wired/Wireless touch controller

DMX-ART can be used as an accurate DMX signal generator via a touch screen adjustments including break, MAB, number of channels, refresh rate and other DMX parameters, it can be used as a simple console, also be used for DMX512 debugging.

Video

Form Factor Type: CNC molding aluminum shell
Size: ：115 x 68x 33 mm
Weight: 250 g
System Information CPU: 32-bit ARM Core
Display Material: TFT
Dimensions: 3.5“
Resolution: HVGA (480X320)
Radio Parameters Range: 600 meters (line-of-sight)
Frequency: 2.402 - 2.480GHz, ISM, 79 channels
Spread Spectrum: FHSS, 1100 hops / sec
Modulation: GFSK
Maximum Transmit Power: 23dBm
Receiver Sensitivity: -94dBm
DMX Signal Interface 3-pin, 5-pin male XLR
3-pin, 5-pin female XLR
Environmental Limits Operating Temperature: 0 ~ 70°C
Storage Temperature: -40 ~ 85°C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements Power Input: DC 5V, ± 5%
Built-in Battery: 1800mAh lithium-ion battery, automatic charge
Power consumption: 90 mA@5V DC max.
Reliability Automatic Reboot Trigger: Built-in WDT (watchdog timer)
Warranty Warranty: One-Year Limited Warranty
